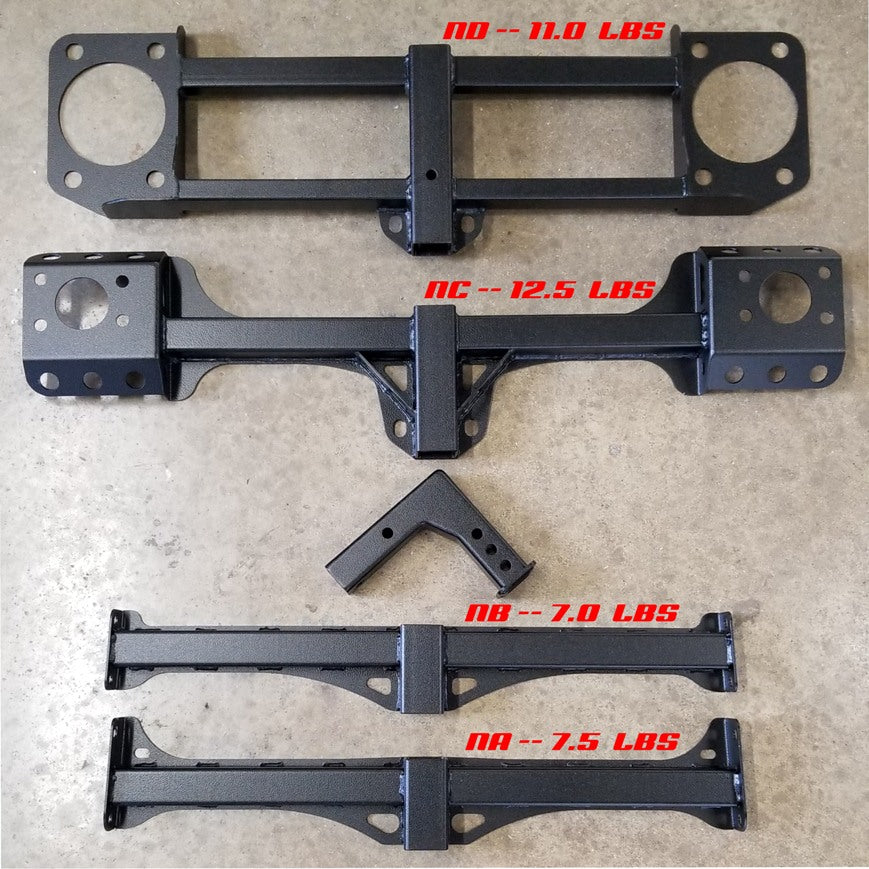

A trailer hitch with a difference. Most aftermarket hitches you can buy are all the same, made from thick wall construction tubing, and way overbuilt for the lighter duty demands of your Miata. Our hitches are completely 3D CAD designed and made of lightweight laser cut sheet metal and tubing, CNC formed, fixture welded then powder coated. This is the only hitch available that's designed with weight and intended use as the major design goals. You can tow a small trailer (say, 4'x4' with your tires and tools) to the track. Once you're there, pull out the ball mount and the part that remains on your Miata weighs as little as 7lb! These hitches are rated for a 750 lb trailer and 100 lb tongue weight - which is plenty to ask of your Miata's chassis and powerplant.

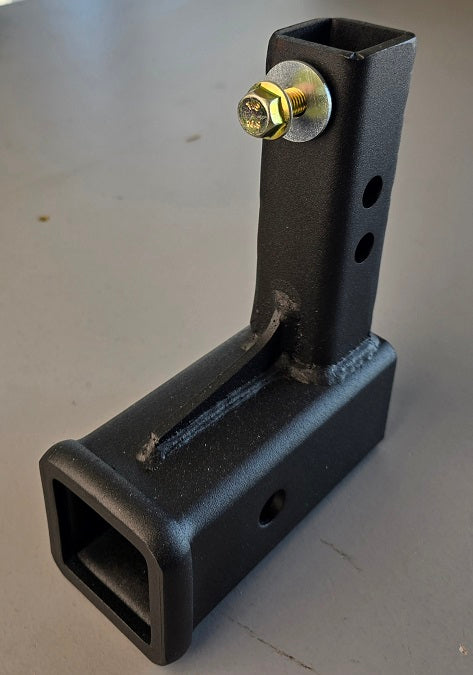

Install the hidden hitch body to the car and attach/remove the 1-1/4" receiver adapter piece when you want to tow or haul. Super simple, no outward appearance changes, and the absolute minimum weight penalty!
The design is compact and is shaped to tuck away neatly behind the bumper cover, and doesn't interfere with the area reserved for the rear muffler. Factory and nearly any other exhausts should fit without issue, unless you have an aftermarket center outlet design or muffler(s) that occupy a similar space. Only a very small, unnoticeable trim of the plastic lower valence is required on the ND. Some NB cars with Mazdaspeed valence or similar may require minor trimming around the removable receiver.
Click to download NA instructions
Click to download NB instructions
Click to download NC instructions
Click to download ND instructions
